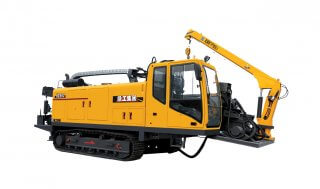

XZ680 horizontal directional drilling rig with the integral and self-loading design adopts various advanced control technologies and the proprietary technologies of the company, and its main performance parameters and control technique have reached the international advanced level. The main components of hydraulic system, electric control system, transmission system and reducer are of top-grade domestic and international brand, and high reliability.
Hydraulic System: Various advanced control technologies such as the closed energy-saving circuit, hydraulic pilot control and electro-hydraulic proportional control are adopted. Imported elements can ensure the reliable quality.
Rotation: Driven by motor reducer to operate at two gear speeds.
Push-Pull: Rack-and-pinion push-pull, stepless speed regulating with two gears and high working efficiency.
Operation: American P+G electric control handle with simple and reliable circuits and high sensitivity.
Engine: The turbocharged engine with high power reserve ensures the drilling power and emergent needs. The imported high-power transfer case ensures the service life.
Drill stand: High- Strength assembled drill stand is suitable for 6-meter drill rod; the sliding drill stand facilitates the angle adjustment.
Drill rod holder: Removable holder and on-board crane make the dismounting and mounting of the drill rod more efficient and easier.
Wire-controlled travel: Wire- controlled travel makes it easy to operate and adjustable at high/low speed.
Monitoring protection: Various parameters of engine, hydraulic pressure and filtration are monitored with alarm so that the machine can be protected effectively.
Emergent operation: It is equipped with manual operation system to provide protection in case of emergency.
发动机型号
Engine model |
东风康明斯
Cummins |
|||||
发动机额定功率
Engine rated power |
|
|
||||
Push-Pull Type |
motor | |||||
最大回拖/进给力
Max. Pull-push strength |
kN |
680/680 |
||||
动力头最大扭
Max.torque of power head |
N.m |
27000 |
||||
动力头转速
Spindle speed |
r/min |
0-100 |
||||
Travelling speed of power head |
m/min |
0-20 |
||||
最大回扩孔直径
Max. Backreaming diameter |
mm |
1000 |
||||
钻杆长度(单根)
Drilling rod length (single) |
m |
6 |
||||
钻杆直径
Drilling rod diameter |
mm |
102 |
||||
钻进角度
Drilling angle |
° |
10-18 | ||||
泥浆最大流量
Mud flow rate(max) |
L/min |
6000 |
||||
泥浆最大压力
Mud pressure(max) |
bar |
100 |
||||
整机质量
Overall weight |
kg |
23000 |
||||
长×宽×高
Dimension( L×W×H) |
mm |
11000×2800×3000 |
