XZ320B

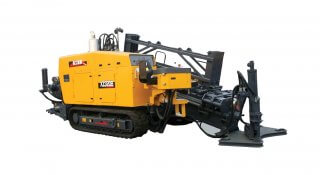

XZ320B horizontal directional drilling rig with the integral and aesthetic design adopts various advanced control technologies and the proprietary technologies of the company, and its main performance parameters and control technique have reached the international advanced level. The main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.

Technical Characteristics:

Strong Power: 97kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operation under all kinds of complicated geological conditions.

Two speed unit head: the unit head operates at low speed during drilling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.

Rubber crawler: it has minimal impact on roads, lawns and scenic spots.

Floating-type vise: it applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.

Automatic handling device or drill rod: This can improve efficiency, and reduce the operators’ labor intensity and the number of construction personnel.

Automatic anchoring: hydraulic drive mode is applied, and the drilling and pullback of anchor is controlled by the oil cylinder and low-speed high torque motor; the operation is easy and convenient.

Easy operation: The operation can be available by rotating and pushing and pulling the power head respectively, and it is easy for the operator to operate the whole drilling rig after a short-term training.

PARAMETER

发动机型号
Engine model
东风康明斯
CUMMINS
发动机额定功率
Engine rated power
kW
hp
160
215
Push-Pull Type
Cylinder
最大回拖/进给力
Max. Pull-push strength
kN
320/200
动力头最大扭
Max.torque of power head
N.m
12000
动力头转速
Spindle speed
r/min
0~140
Travelling speed of power head
m/min
0-20
最大回扩孔直径
Max. Backreaming diameter
mm
800
钻杆长度(单根)
Drilling rod length (single)
m
3
钻杆直径
Drilling rod diameter
mm
73
钻进角度
Drilling angle
°
10~20
泥浆最大流量
Mud flow rate(max)
L/min
320
泥浆最大压力
Mud pressure(max)
bar
80
整机质量
Overall weight
kg
12100
长×宽×高
Dimension( L×W×H)
mm
6900×2300×2450
